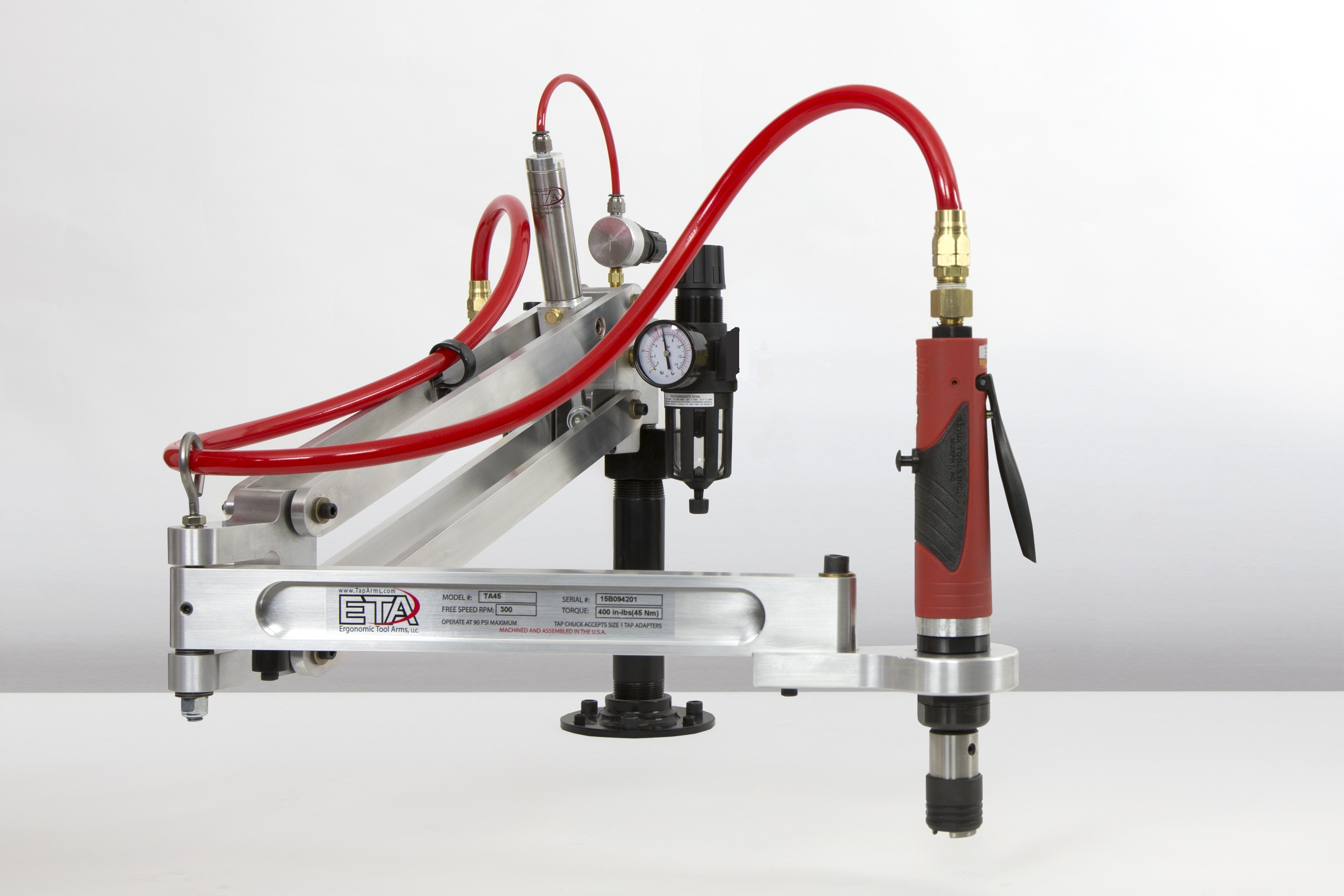

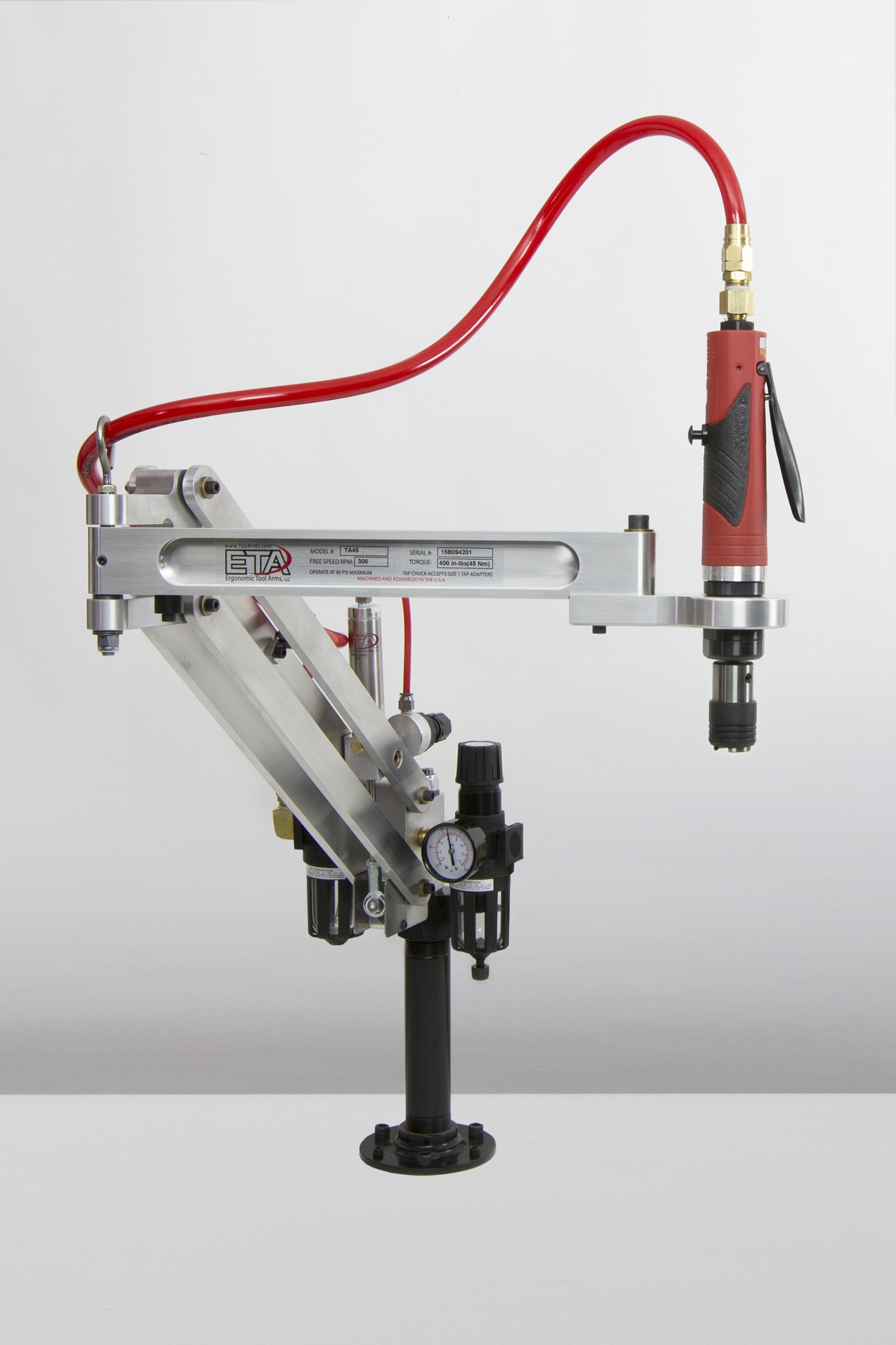

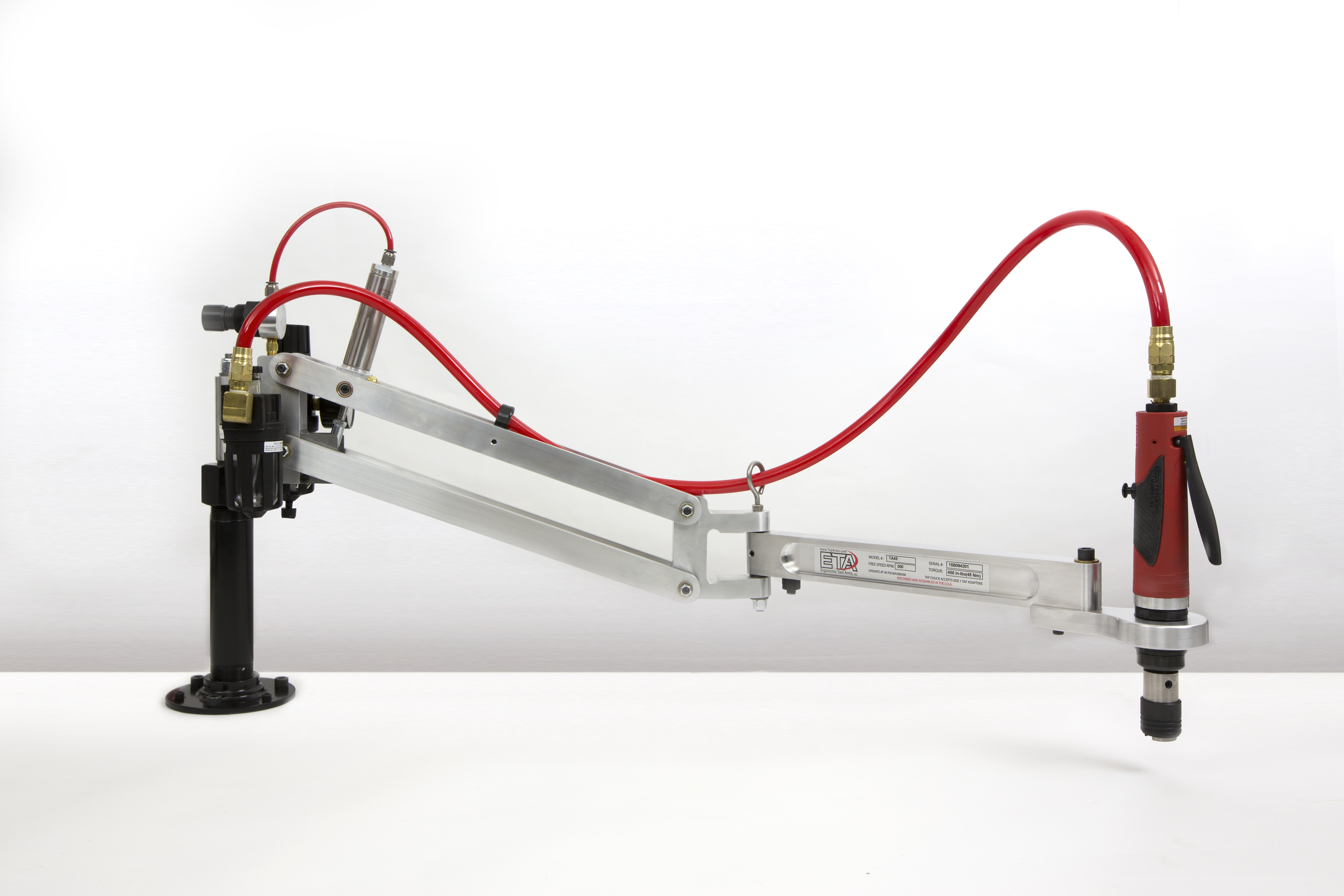

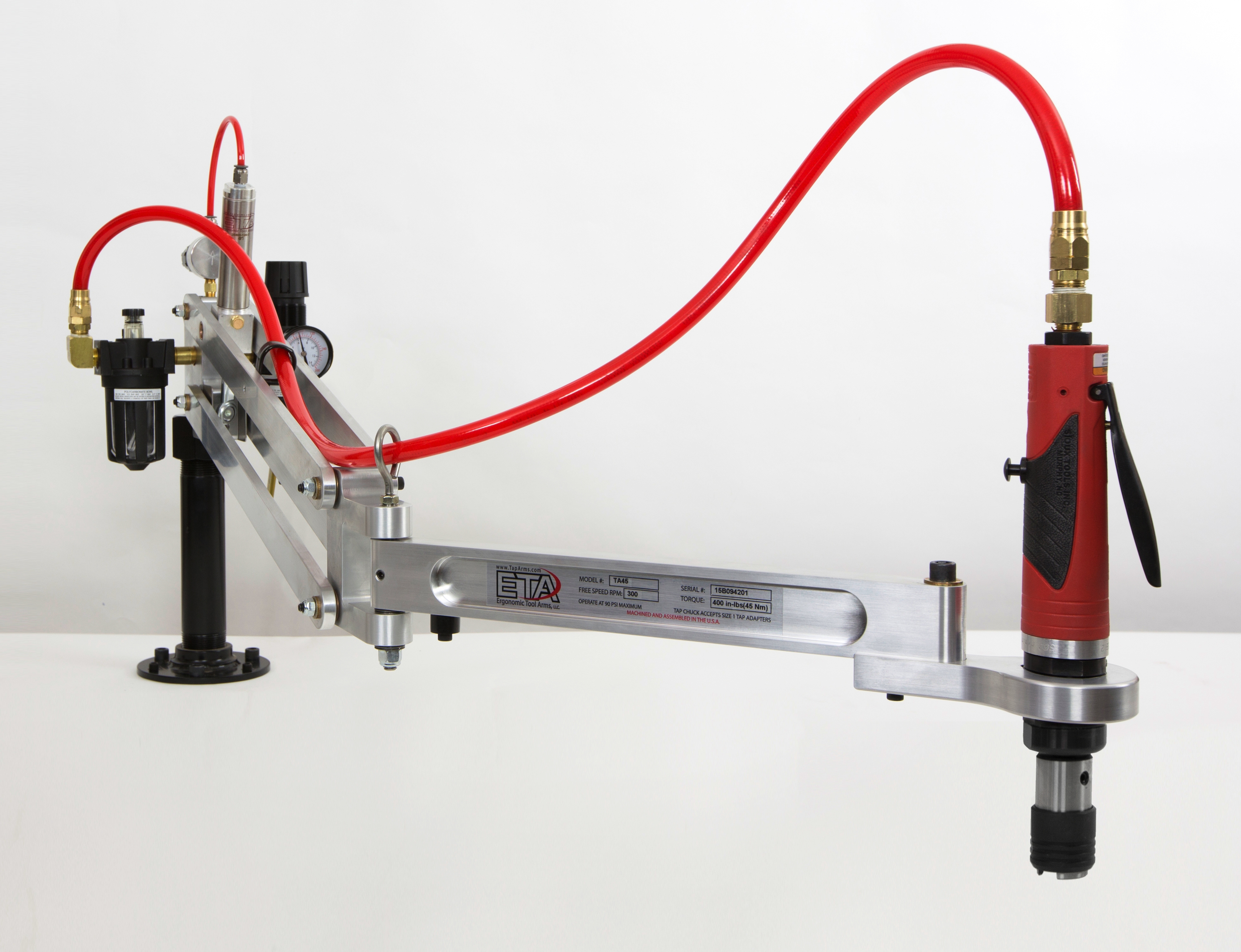

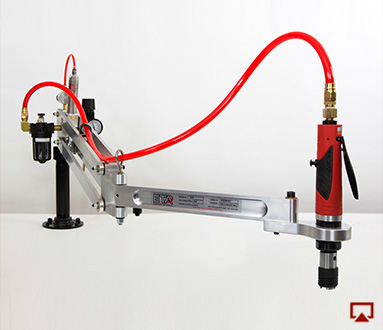

• Models Below Include Tap Arm, 1 HP Air Powered Tap Motor, BILZ Tap Chuck and Air Prep (F/R/L)
  • Shipped Fully Assembled
  • 12-1/4" to 37" (312 TO 940mm) Radial Working Range
  • Quick Change Size 1 Chuck fits Tap Adapters from 0 to 9/16" (M14) capacity and Extended Range Holders up to 7/8" (M22) Threads
  • 5 Year Wear-Out Warranty on Arm & Float Cylinder, regardless of number of cycles
  • 30 cfm (14 l/s) required @ 90 psi max
ETA Model # Free Speed RPM Max Tap Size
MILD STEEL*		 Max Tap Size
ALUMINUM*		 Torque
in. Lb (Nm)		 Hole Orientation Air Prep Tap Adapters 3D Model
TA45 300 5/8" (M16) 3/4" (M18) 400 (45) VERTICAL FILTER REGULATOR LUBRICATOR INCLUDED PURCHASED INDIVIDUALLY
[Tap Adapters]		 CAD
TA37 500 1/2" (M12) 5/8" (M16) 325 (37)
TA25 700 3/8" (M10) 1/2" (M12) 220 (25)
TA16 1,200 1/4" (M6) 3/8" (M10) 145 (16)
* Maximum tap sizes are conservatively based on actual shop tests, but are dependent on a number of factors including air supply volume, hole size, hole depth, tap configuration, tap dullness, thread cutting lubrication and tap motor lubrication. If your application requires thread sizes at or near the limits above, as a free service ETA will test your sample parts with your tap using a TA Series Tapping Arm. Consult your ETA distributor or contact us at ETA directly to make arrangements.

ETA Tap Arm Systems are available through Authorized ETA Distributors only. Please contact us for the name of your closest distributor.

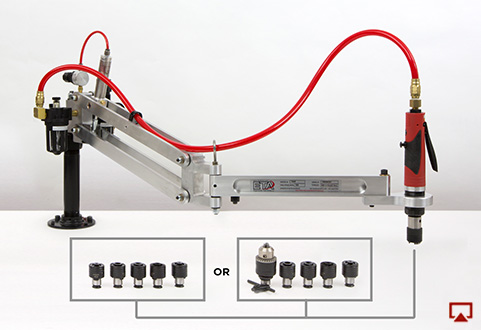

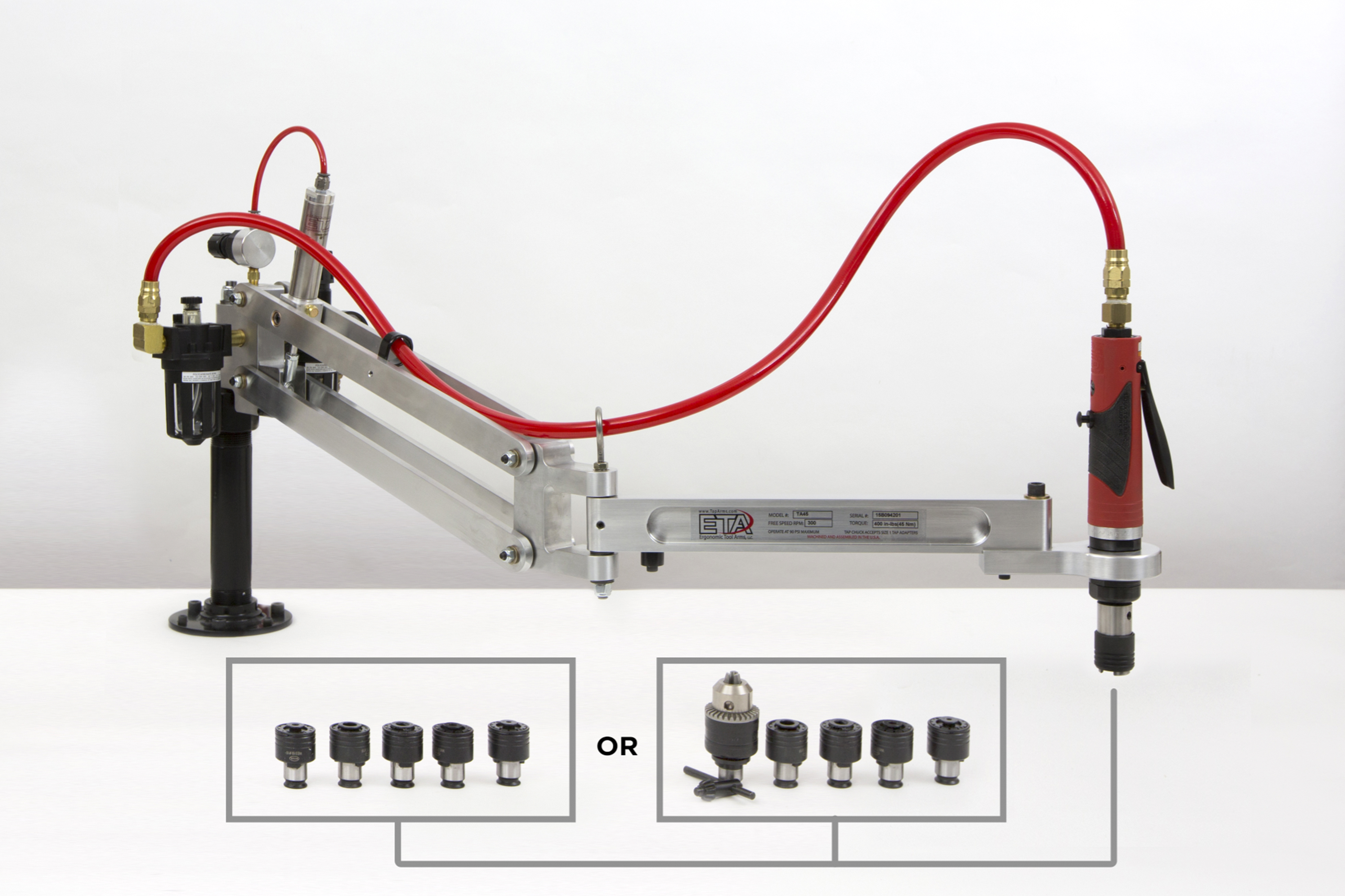

  • Models Below Include 5 Torque Limiting Tap Adapters, Tap Arm, 1 HP Air Powered Tap Motor, BILZ Tap Chuck and Air Prep (F/R/L)
  • Shipped Fully Assembled
  • 12-1/4" to 37" (312 TO 940mm) Radial Working Range
  • Quick Change Size 1 Chuck fits Tap Adapters from 0 to 9/16" (M14) capacity and Extended Range Holders up to 7/8" (M22) Threads
  • 5 Year Wear-Out Warranty on Arm & Float Cylinder, regardless of number of cycles
  • 30 cfm (14 l/s) required @ 90 psi max
ETA Model # Free Speed RPM Max Tap Size
MILD STEEL*		 Max Tap Size
ALUMINUM*		 Torque
in. Lb (Nm)		 Hole Orientation Air Prep Tap Adapters 3D Model
TA45-A5 300 5/8" (M16) 3/4" (M18) 400 (45) VERTICAL FILTER REGULATOR LUBRICATOR INCLUDED INCLUDES ANY 5 ADAPTERS FROM SECTION 1
[Tap Adapters ]		 CAD
TA37-A5 500 1/2" (M12) 5/8" (M16) 325 (37)
TA25-A5 700 3/8" (M10) 1/2" (M12) 220 (25)
TA16-A5 1,200 1/4" (M6) 3/8" (M10) 145 (16)
* Maximum tap sizes are conservatively based on actual shop tests, but are dependent on a number of factors including air supply volume, hole size, hole depth, tap configuration, tap dullness, thread cutting lubrication and tap motor lubrication. If your application requires thread sizes at or near the limits above, as a free service ETA will test your sample parts with your tap using a TA Series Tapping Arm. Consult your ETA distributor or contact us at ETA directly to make arrangements.

ETA Tap Arm Systems are available through Authorized ETA Distributors only. Please contact us for the name of your closest distributor.

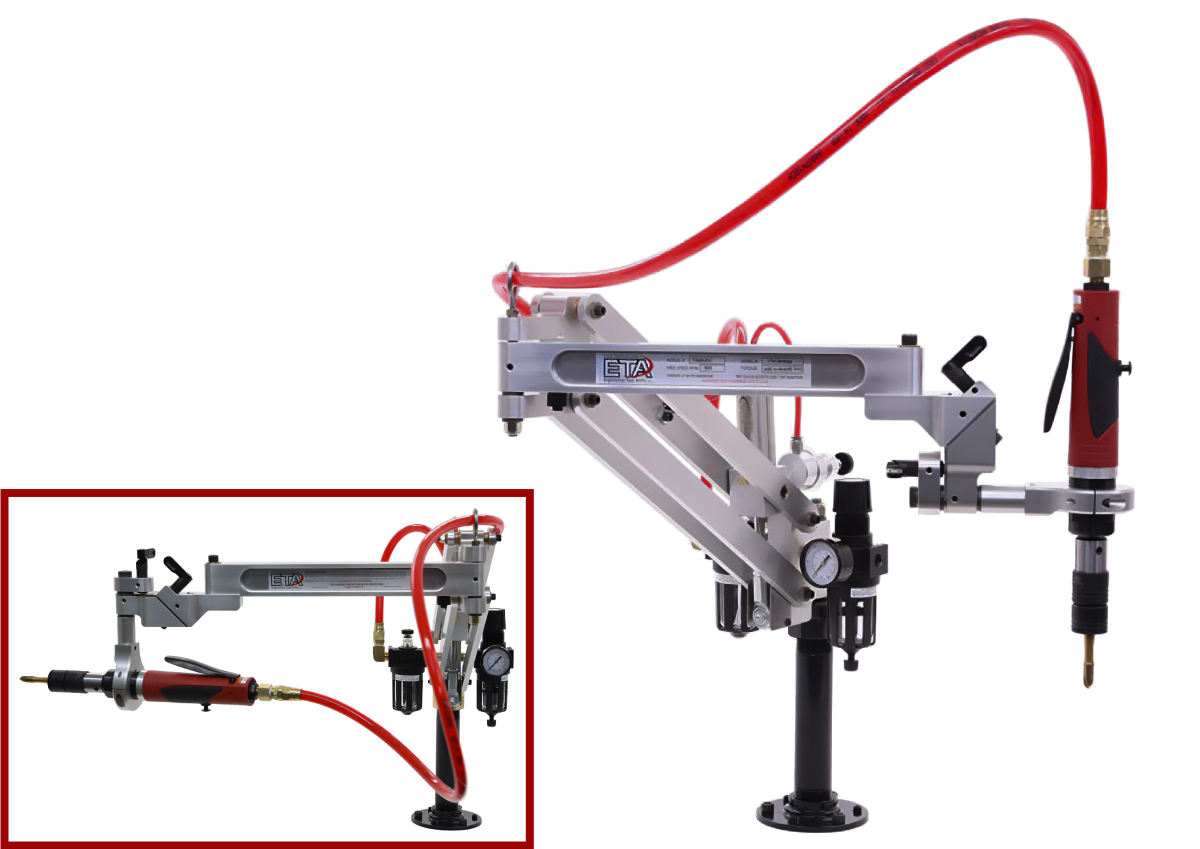

  • Models Below Include Tap Arm, H/V Flip Holder for tapping both vertically and horizontally (Holder quickly unlocks and switches drive positions in a few seconds.) 1 HP Air Powered Tap Motor, (F/R/L), & BILZ Tap Chuck
  • Shipped Fully Assembled
  • 15" to 41" (381 TO 1042mm) Radial Working Range
  • Quick Change Size 1 Chuck fits Tap Adapters from 0 to 9/16" (M14) capacity and Extended Range Holders up to 7/8" (M22) Threads
  • 5 Year Wear-Out Warranty on Arm & Float Cylinder, regardless of number of cycles
  • 30 cfm (14 l/s) required @ 90 psi max
ETA Model # Free Speed RPM Max Tap Size
MILD STEEL*		 Max Tap Size
ALUMINUM*		 Torque
in. Lb (Nm)		 Hole Orientation Air Prep Tap Adapters 3D Model
TA45-HV 300 5/8" (M16) 3/4" (M18) 400 (45) VERTICAL & HORIZONTAL FILTER REGULATOR LUBRICATOR INCLUDED Not Included - Purchased Individually
[Tap Adapters ]		 CAD
TA37-HV 500 1/2" (M12) 5/8" (M16) 325 (37)
TA25-HV 700 3/8" (M10) 1/2" (M12) 220 (25)
TA16-HV 1,200 1/4" (M6) 3/8" (M10) 145 (16)
Horizontal to Vertical Flip Holder cannot be purchased seperately and added to other TAxx models because TAxx-HV arms require a larger air cylinder than other models due to additional weight of the H/V Flip Holder. For adding horizontal tapping capability to existing TA Series Arms use the HTMH holder listed in Accessories.

* Maximum tap sizes are conservatively based on actual shop tests, but are dependent on a number of factors including air supply volume, hole size, hole depth, tap configuration, tap dullness, thread cutting lubrication and tap motor lubrication. If your application requires thread sizes at or near the limits above, as a free service ETA will test your sample parts with your tap using a TA Series Tapping Arm. Consult your ETA distributor or contact us at ETA directly to make arrangements.

ETA Tap Arm Systems are available through Authorized ETA Distributors only. Please contact us for the name of your closest distributor.

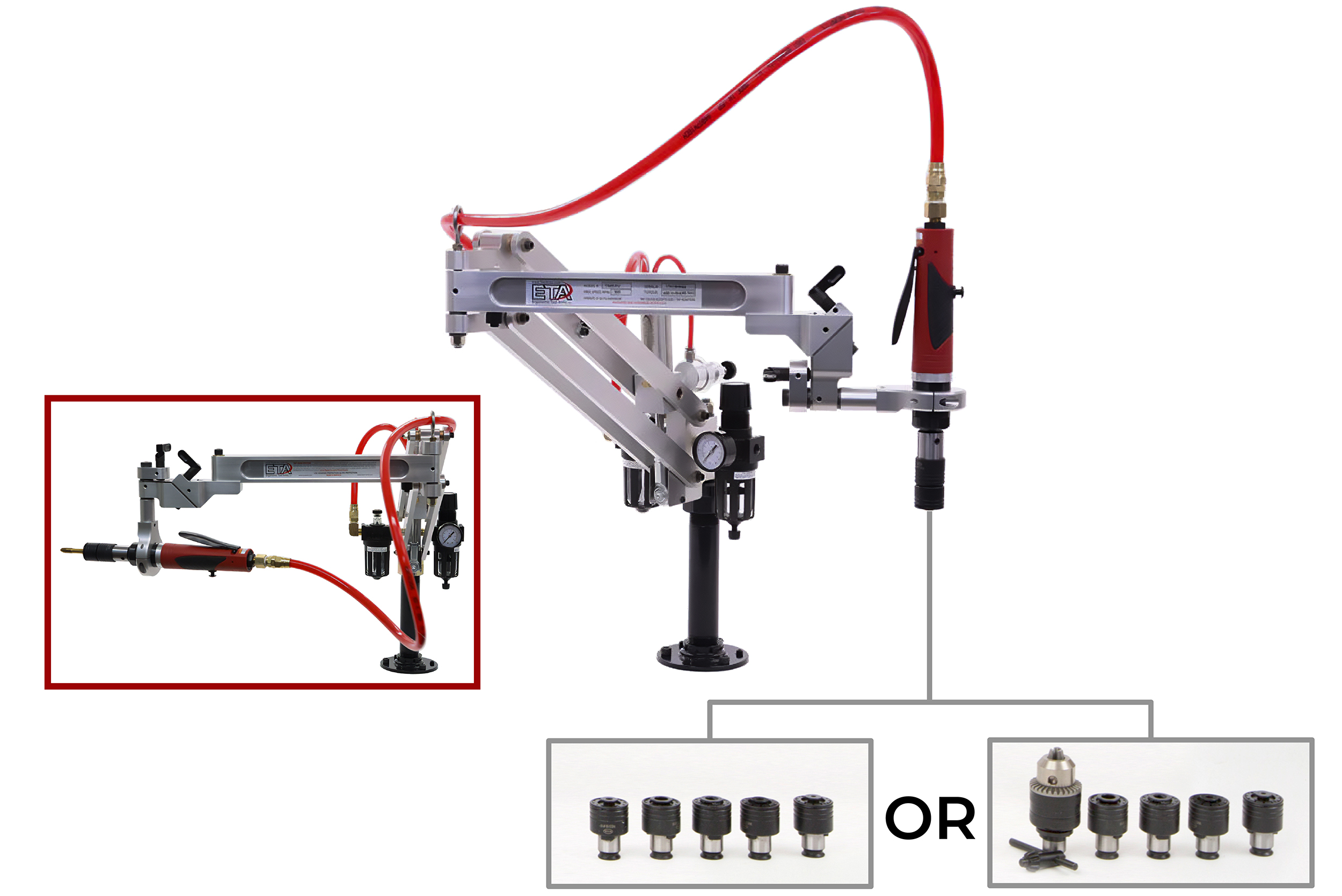

  • Models Below Include 5 Torque Limiting Tap Adapters Tap Arm, H/V Flip Holder for tapping both vertically and horizontally (Holder quickly unlocks and switches drive positions in a few seconds.) 1 HP Air Powered Tap Motor, (F/R/L), & BILZ Tap Chuck
  • Shipped Fully Assembled
  • 15" to 41" (381 TO 1042mm) Radial Working Range
  • Quick Change Size 1 Chuck fits Tap Adapters from 0 to 9/16" (M14) capacity and Extended Range Holders up to 7/8" (M22) Threads
  • 5 Year Wear-Out Warranty on Arm & Float Cylinder, regardless of number of cycles
  • 30 cfm (14 l/s) required @ 90 psi max
ETA Model # Free Speed RPM Max Tap Size
MILD STEEL*		 Max Tap Size
ALUMINUM*		 Torque
in. Lb (Nm)		 Hole Orientation Air Prep Tap Adapters 3D Model
TA45-HV-A5 300 5/8" (M16) 3/4" (M18) 400 (45) VERTICAL & HORIZONTAL FILTER REGULATOR LUBRICATOR INCLUDED INCLUDES ANY 5 ADAPTERS FROM SECTION 1
[Tap Adapters ]		 CAD
TA37-HV-A5 500 1/2" (M12) 5/8" (M16) 325 (37)
TA25-HV-A5 700 3/8" (M10) 1/2" (M12) 220 (25)
TA16-HV-A5 1,200 1/4" (M6) 3/8" (M10) 145 (16)
Horizontal to Vertical Flip Holder cannot be purchased seperately and added to other TAxx models because TAxx-HV arms require a larger air cylinder than other models due to additional weight of the H/V Flip Holder. For adding horizontal tapping capability to existing TA Series Arms use the HTMH holder listed in Accessories.

* Maximum tap sizes are conservatively based on actual shop tests, but are dependent on a number of factors including air supply volume, hole size, hole depth, tap configuration, tap dullness, thread cutting lubrication and tap motor lubrication. If your application requires thread sizes at or near the limits above, as a free service ETA will test your sample parts with your tap using a TA Series Tapping Arm. Consult your ETA distributor or contact us at ETA directly to make arrangements.

ETA Tap Arm Systems are available through Authorized ETA Distributors only. Please contact us for the name of your closest distributor.
Fit, function & longevity of the TA Series Tapping Arm comes from simple yet durable design and our tap arm systems come at a very practical price. Precision machining and hand fitting of components during assembly make ETA tap arms the Swiss watch of tapping arms. TA Series Tapping Arms are designed, machined and assembled in the United States by Americans. We back this statement with a 5 year warranty against wear-out. These floating tap arms offer the most flex ability in a tap arm. It's easy to adjust our tapping machine to float up and out of the way between holes or when not in use or you can set the float tap arm to suspend perfectly in any position. Threads are formed or cut without torque reaction because the tap arm keeps the tool from spinning. Bilz tap chuck and Bilz tap adapters used in our tapping arm systems are interchangeable with T.M. Smith, Flexarm, Collis, Universal, Lyndex, 3Arm, Accupro, Centaur, Emuge, Erickson, Parlec, and others.
